Incubator

Test ideas and PoC for new concepts

Features

MobileOrg feature overview

Org-mode has built-in support for MobileOrg (or any other mobile client that may come along in the future and use the same asymmetric synchronization approach).

A simple org-mobile-push will stage your complete set of Org-files for MobileOrg to pick them up. The result includes:

Documentation

Getting Started

MobileOrg uses a WebDAV server or Dropbox to interact with your Org-files. It downloads Org files from the server, and uploads captured notes to a mobileorg.org file on the same server. The documentation below covers how to get started using Dropbox or set up a WebDAV account (using free services or your own server), how to download and finally browse Org-files stored on your device.

Be sure to install MobileOrg prior to following these guides. You can find MobileOrg in the App Store on your device by searching for MobileOrg.

Using Dropbox

Setup your WebDAV account

Syncing with MobileOrg

Browsing your Org files

Encryption

Further Reading

Once you are comfortable browsing your Org files, take a look at the following documents to help you get even more from MobileOrg.

Mastering search

Capturing notes

Integrating with Org-mode

Screencasts

Overview of MobileOrg

Frequently Asked Questions

FAQ’s can be found on the MobileOrg GitHub page.

Development - Release Notes - How to contribute - Credits - Current and past developers - Libraries used

Using Dropbox

Dropbox provides 2GB of free storage that can be synchronized between multiple devices. MobileOrg can use Dropbox as a transfer backend as an alternative to WebDAV to make setup easier.

A screencast is available that illustrates how to setup MobileOrg from start to finish.

To get started with MobileOrg + Dropbox:

;; Set to the location of your Org files on your local system
(setq org-directory "~/org")
;; Set to the name of the file where new notes will be stored
(setq org-mobile-inbox-for-pull "~/org/flagged.org")
;; Set to <your Dropbox root directory>/MobileOrg.
(setq org-mobile-directory "~/Dropbox/Apps/MobileOrg")

After capturing notes or making changes on the device to your Org files, be sure to sync in MobileOrg. Then run org-mobile-pull from Emacs to integrate your changes. After integrating, you can run org-mobile-push to make sure MobileOrg has access to the latest version of your files.

NOTE: If you already had a MobileOrg directory in your ~/Dropbox/Apps, a new folder will be created like MobileOrg (1). You should rename the newly created MobileOrg (1) folder to something that makes more sense, perhaps MobileOrg-staging before proceeding. Be sure your org-mobile-directory Emacs variable reflects this change.

ANOTHER NOTE: There is a bug in the current version that requires you to press ‘Enter’ on the iPhone keyboard after entering your password. If you click on ‘Log into Dropbox’ prior to pressing ‘Enter’, you will receive a login error message. This will be fixed in the next version.

LAST NOTE: If you are a Windows user, you will need to have md5sum.exe or sha1sum.exe in your system path before org-mobile-push will succeed. You can find either of them here: http://gnuwin32.sourceforge.net/packages/coreutils.htm

Setup your WebDAV account

MobileOrg uses the WebDAV protocol to stay up-to-date and synchronize notes. WebDAV is a set of extensions to HTTP that allow client applications such as MobileOrg to not only read the contents of files on a web server but to write changes to them as well. This allows MobileOrg to have a two-way communications channel with your web server.

What goes on the WebDAV server?

Your org files, in whatever directory you would like. The examples below use an org subfolder with a primary Org-file named index.org. Other Org-files may reside alongside index.org if you would like. Syncing with MobileOrg describes how to link multiple Org files together.

For example, on my Mac, I have my WebDAV share mounted at /Volumes/private.

$ ls /Volumes/private/org
index.org meetings.org reference.org

These files are then accessible via WebDAV at: http://www.example.com/private/org/index.org

Choosing a WebDAV server

You have several options to choose from:

Your decision will not affect the operation of MobileOrg, but it will determine what settings you will need to input on the Settings page. The Settings page is available at any time by clicking the Settings icon in the lower application toolbar.

There are 3 user-configurable fields:

If you would like to verify that your WebDAV server is setup correctly, visit the server address in your web browser. If the Org file is displayed or downloaded, you will know that it is working. If not, please check your settings against the examples below. Visit our Support page if you have any trouble.

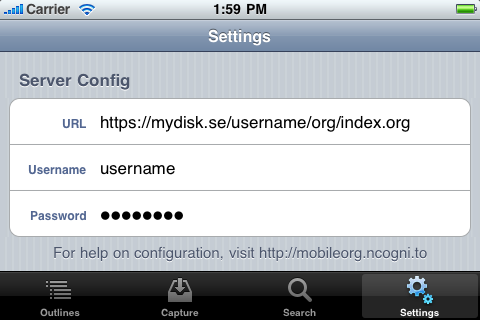

Using MyDisk.se

Visit MyDisk and sign up for their free 2GB WebDAV account. After you register, enter in the following settings into MobileOrg. Replace username with your designated MyDisk username.

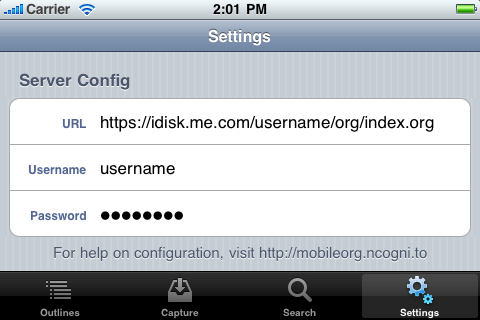

Using MobileMe iDisk

If you are a MobileMe user, you already have access to a WebDAV server: iDisk. Your Mac may already be setup to display the contents of your iDisk in Finder. You can create an org folder on your iDisk as you would any other folder on your system. The following settings are to be used when using the iDisk server with MobileOrg.

Using your own Apache server with mod_dav

Hosting your own WebDAV server is easy if you have access to an Apache webserver. In an appropriate configuration block, add:

DAVLockDB /usr/local/apache/var/DAVLock
<Location /org>
    DAV On
    AuthType Basic
    AuthName "My Org Files"
    AuthUserFile /path/to/htpasswd-file
    <Limit GET PUT POST DELETE PROPFIND PROPPATCH MKCOL COPY MOVE LOCK UNLOCK>
        Require valid-user
    </Limit>
</Location>

Be sure to setup some type of authentication, either using AuthUserFile or some other more advanced means, depending on your needs.

Once you have configured your server, point MobileOrg to your index.org file in the Address portion of the Server Config settings.

Using your own nginx server

Tim Dysinger has contributed instructions to setup nginx for MobileOrg use.

#!/bin/sh

# on ubuntu: need some utils & dev libs
sudo apt-get install apache2-utils openssl libssl-dev libpcre3-dev

# compile nginx
cd /tmp
curl http://nginx.org/download/nginx-0.7.64.tar.gz | tar xz
cd nginx*
./configure --with-http_ssl_module --with-http_dav_module \
  --prefix=$HOME/nginx
make && make install

# generate an htpasswd file
htpasswd -c ~/.htpasswd $(whoami)

# ssl
openssl genrsa 1024 > ~/nginx/conf/server.key
openssl req -new -x509 -nodes -sha1 -days 365 \
    -key ~/nginx/conf/server.key > ~/nginx/conf/server.crt

# configure
cat > ~/nginx/conf/nginx.conf <<EOF
events {
worker_connections 1024;
}
http {
include mime.types;
default_type application/octet-stream;
ssl_certificate server.crt;
ssl_certificate_key server.key;
auth_basic "Restricted";
auth_basic_user_file $HOME/.htpasswd;
dav_methods put delete mkcol copy move;
dav_access user:rw;
create_full_put_path on;
server {
listen 1080;
listen 1443 ssl;
location ~ ^/org(/.*)?$ {
alias $HOME/org/mobile\$1;
}
}
}
EOF

# now you can start nginx
~/nginx/sbin/nginx

# and then sync w/ org-mobile-push/pull & mobileorg sync
# URL: http://<my-nginx-ip-addr>:1080/org/index.org
# or use
# URL: https://<my-nginx-ip-addr>:1443/org/index.org
# and your username and password you used above for htpasswd

Syncing with MobileOrg

Once your server is properly configured, you can click on the Outlines toolbar icon, then click the Sync icon to start fetching your files.

What files are transferred?

Your index.org file is fetched, then any files it links to are fetched, and so on. For example, in the following case, 4 .org files will be transferred: index.org, first.org, second.org and third.org. You may notice third.org` is linked to from two different places, but it is only downloaded once.

Contents of index.org:

* [[file:first.org][An Org file I like]]
* [[file:second.org][Another Org file I like]]
  This is a [[file:third.org][link]] in the body text.

Contents of first.org:

* Some text
* [[file:third.org][Link to third.org]]

For the sake of our example, the files second.org and third.org do not contain any links, so their contents are irrelevant.

The sync process continues until all Org files (and the Org files they link to) have been downloaded.

Are my files transferred every time?

MobileOrg uses a fairly simple caching mechanism to prevent from unnecessarily downloading the same Org files repeatedly. If a file named checksums.dat exists in parallel to your index.org file on the server, only files whos checksums have changed will be re-downloaded.

You will need to keep the checksums.dat file up-to-date any time changes are made to your Org files.

Constructing checksums.dat:

$ md5sum * >checksums.dat
$ cat checksums.dat
2b00042f7481c7b056c4b410d28f33cf  first.org
41930d894e1a4c2353b85d0b8d96f381  index.org
e5b12e4697d09fa9757d3dc6fcaa5c5b  second.org
05eaf1239d84508477cda9d0fa86b1a1  third.org

If your Org file structure consists of subdirectories as well, you can use the following script to generate the checksum file recursively:

find . -name "*.org" -type f -print | sed 's/^\.\///' | xargs md5sum >checksums.dat

MobileOrg recognizes the output of md5sum, md5 (on OSX), shasum and sha1sum.

Browsing your Org files

MobileOrg tries to make it easy to manage Org files both large and small.

Walking the hierarchy

Clicking on the text of a node in the Outline view will drill you down one level deeper into the tree and display that node’s children. To go back to the node you were previously viewing, click the back-arrow button in the upper left corner.

If the node you click on has no children, its details page will be displayed instead. See the next section for more information.

Viewing node details

To view the details for any node, click on the blue disclosure icon on the right of the cell. The details page shows the node title and full body text.

Action Menu

The Action Menu is a context-sensitive menu that allows you to perform actions on nodes, such as marking them as done or viewing them as HTML documents. To bring up the Action Menu, touch and hold your finger on any node’s title text in the Outline view. The Action Menu will slide up and present you with several action buttons.

Document view

While the Outline tree is very useful to quickly browse the outline and find a particular node, it is not the best representation as far as readability of notes is concerned, because the headlines and the body text are structurally separated. For reading, MobileOrg has a Document View which shows an HTML representation of an entire file or subtree, rooted at whatever level you choose to open it at. Document View can be accessed through the Action Menu, or from the details page of a node.

TODO: Show a screenshot of doc view.

Encryption

MobileOrg now supports encryption so that files on your WebDAV server or Dropbox are not stored in plain text.

Be sure you are using MobileOrg 1.5+ and Org-mode 7.02+.

To configure Org-mode to use encryption, use:

;; Enable encryption
(setq org-mobile-use-encryption t)
;; Set a password
(setq org-mobile-encryption-password "mypassword")

Then run org-mobile-push from Emacs after reloading your configuration file. You should notice that the files in your staging area are encrypted.

Next, open MobileOrg and enter your encryption password in the Settings tab. Perform a sync, and you are done.
